FSA2 Torque Gauge

$999.00

Clockwise and Counter-clockwise

Accepts Containers or Samples up to 7” in Diameter

Wireless PC Connectivity

MicroSD Memory Card (included)

Ports: USB | RS232 | Analog I/O

1000Hz Sampling Rate

Rugged Die-cast Metal Housing

Rechargeable Batteries

150% Overload Protected

6 Modes and Applications Including Pass / Fail

15 Features and Functions

5 Units of Measure

Capacity and Resolution

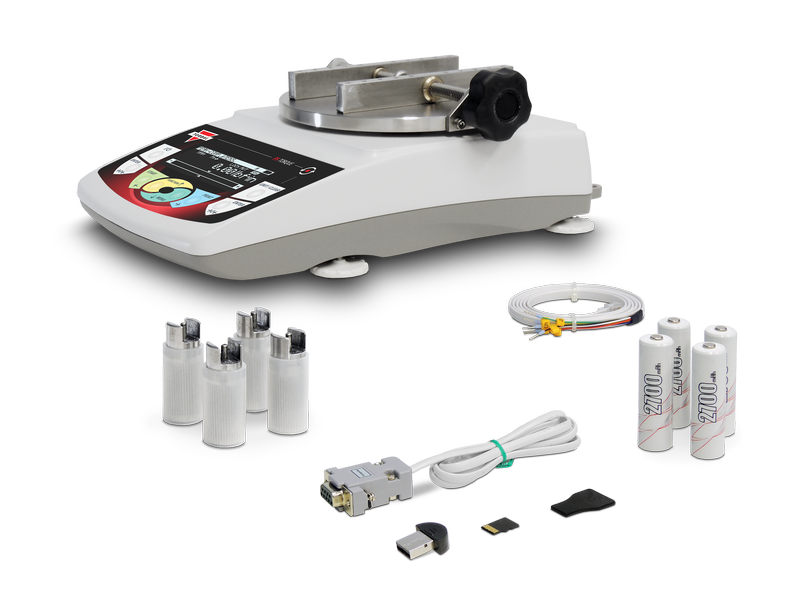

What’s in the Box

microSD Card

Premium SDHC Class 4 microSD memory card

Mini USB Wireless Adapter

Class 2 transceiver offers a range of up to 10m (32ft) for the force gauge

Clamping Posts

Adjustable steel posts covered with non-slip rubber sleeves assure a firm grip of a wide range of container shapes and sizes.

Rechargeable Batteries

Four AA format removable and rechargeable premium quality Ni-MH 2700mAh batteries

Analog I/O Cable

Premium 4.5 foot analog input and output cable with labeled and pinned connectors

RS232 Cable

36” long DB9 female RS232 cable for PC Connectivity

MODELSFSA2FSA5FSA10
Capacity (Max)17lbF.in | 2Nm44lbF.in | 5Nm100lbF.in | 10Nm
Resolution0.01lbF.in | 0.001Nm0.01lbF.in | 0.001Nm0.1lbf.in | 0.01Nm
Sampling Rate1000Hz
Accuracy±0.5% Full Scale
Overload150% Full Scale (Display Limit: 110%)
InterfaceBT Wireless, USB (B Type), RS232, microSD (SDHC Class 4), Analog I/O
Input / Output PortTHR
Operating Temperature14°F to 104°F | -10 to 40°C | Humidity: Up to 80 % Max.
Measuring UnitsNm, N.cm, kgf.m, gf.m, lbf.in
Rechargeable Batteries4 x Ni-MH 2700mAh
Battery Operating Time14h (LCD Backlight OFF, BT Wireless OFF) | 11h (LCD Backlight ON, BT Wireless OFF) | 8h (LCD Backlight ON, BT Wireless ON)
Power Supply12V, 1.2A
Sample Diameter Range0.79 to 7.09 in (20 to 180 mm)
Dimensions13.6 x 9.3 x 6.3 in (345 x 236 x 160 mm)
Unit Weight11.3lb (5.1kg)
Warranty24 Months
