FSB10 Torque Gauge

$1,369.00

Clockwise and Counter-clockwise

Securely Chucks Bits and Grips

Wireless PC Connectivity

MicroSD Memory Card (included)

Ports: USB | RS232 | Analog I/O

1000Hz Sampling Rate

Rechargeable Batteries

150% Overload Protected

6 Modes and Applications Including Pass / Fail

16 Features and Functions

5 Units of Measure

Capacity and Resolution

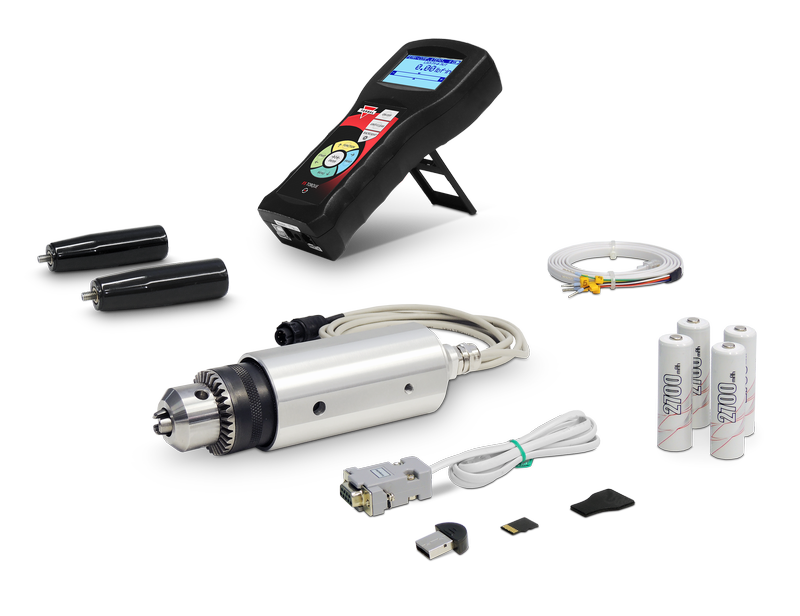

What’s in the Box

microSD Card

Premium SDHC Class 4 microSD memory card

Mini USB Wireless Adapter

Class 2 transceiver offers a range of up to 10m (32ft) for the force gauge

Load-Cell Handles

Two heavy duty external load-cell sensor handles for handheld usability.

Chuck Clamp Load cell

Heavy duty precision load-cell sensor with a 6.5ft cable

Rechargeable Batteries

Four AA format removable and rechargeable premium quality Ni-MH 2700mAh batteries

Analog I/O Cable

Premium 4.5 foot analog input and output cable with labeled and pinned connectors

RS232 Cable

36” long DB9 female RS232 cable for PC Connectivity

MODELSFSB2FSB5FSB10
Capacity (Max)17lbF.in | 2Nm44lbF.in | 5Nm100lbF.in | 10Nm
Resolution0.01lbF.in | 0.001Nm0.01lbF.in | 0.001Nm0.1lbf.in | 0.01Nm
Sampling Rate1000Hz
Accuracy±0.5% Full Scale
Overload150% Full Scale (Display Limit: 110%)
InterfaceBT Wireless, USB (B Type), RS232, microSD (SDHC Class 4), Analog I/O
Input / Output PortTHR
Operating Temperature32°F to 104°F | 0 to 40°C | Humidity: Up to 80 % Max.
Measuring UnitsNm, N.cm, kgf.m, gf.m, lbf.in
Rechargeable Batteries4 x Ni-MH 2700mAh
Battery Operating Time16h (LCD Backlight OFF, BT Wireless OFF) | 13h (LCD Backlight ON, BT Wireless OFF) | 10h (LCD Backlight ON, BT Wireless ON)
Power Supply12V, 1.2A
Sample Diameter Range1.5 to 13 mm (0.059 to 0.512 in)
Sensor w/ Chuck DimensionsØ1.97 x 7.28 in (Ø50 x185 mm)
Sensor Chuck Depth1.18 in
Sensor w/ Chuck Weight1.9lb (860g)
Warranty24 Months
